为啥现在用PC播放杜比视界是最简单也是较好的？

hsmms

tianyuansnow 发表于 2025-2-19 17:29
我一直以为动态映射对每一帧进行处理
比如帧内峰值300，设备峰值1000，那么300会被提亮，也就是这一帧整体 ...

动态映射是可以做到每一帧处理但是完全没必要


还有无论HDR10还是DV都是基于PQ的，PQ是绝对亮度，该是什么亮度就是什么亮度，超过显示设备峰值亮度就进行压缩，在显示设备亮度范围内就按照实际亮度显示（对于动态映射）

而静态映射在于静态映射在一部片子只使用一条映射曲线，但问题是一条映射曲线跟本无法应付不同亮度场景，具体的区别看我上面101楼的对比图

hsmms

tianyuansnow 发表于 2025-2-19 18:05
我要是madVR，HDR动态映射HDR呢？
比如片源是HDR10，设备是峰值1000的，这种情况下动态映射是不是约等于 ...

不要理这人的任何内容，这只会让你越来越糊涂

tianyuansnow

hsmms 发表于 2025-2-19 18:09
动态映射是可以做到每一帧处理但是完全没必要

我仔细看了101楼的图，确实如你所说：
在 “HGIG+动态映射” 的前提下，低于设备峰值亮度的信息会按照1：1的绝对亮度呈现
而高于的亮度信息会采用动态映射进行重新映射以确保画面的正常和舒适

但是按照目前的结论来看，“杜比视界”是无法被“HDR10+动态映射”取代的，尤其是显示设备自身拥有超过1000nits的峰值亮度时

但是我还是有一点不确定，动态映射真的只有一种吗？不存在把低亮度信息根据显示设备的实际情况往高了拉的情况吗？
根据我的经验，我看到别人在使用LG G系列电视时，G3和G4（10APL峰值超过1000nits），用电视内置的动态映射，那个画面确实是被提亮处理了的（但是并不会整体提亮，因为该暗的地方还是很暗）
当然，我这么问不严谨，因为前提说的是madVR的动态映射

kxx123

tianyuansnow 发表于 2025-2-19 18:05
我要是madVR，HDR动态映射HDR呢？
比如片源是HDR10，设备是峰值1000的，这种情况下动态映射是不是约等于 ...

我早就做过无数次的尝试了，也编写过超过十几条的profile，各种动态色调映射方案同HDR passthrough进行瞬间切换对比，madVR的动态色调映射+HDR输出是必定会压缩亮度的，否则我怎么会让hsmms“大神”提供我上面的HDR600的实战证据呢，连300nit都保不住哦！

只有一种情况下，madVR的动态色调映射+HDR输出是好于HDR passthrough的，那就是真正超高亮度制作的影视，目前我只在“海王”和“巨齿鲨”上看到过，这是杜比视界和madVR的动态色调映射明显好过passthough，当然还有些私人草根制作的高亮HDR演示片。

如果你仔细看过我主楼的所有文字和图，你就应该明白，我不是说杜比视界或动态色调映射不好，而是现在的片源情况根本不需要，因为超高峰值亮度的内容往往只占画面的极小部分或是只有极少帧上会有，帧平均亮度20nit都没有哦！假定全片一直有几个像素的峰值亮度是10000nit，而其余绝大多数像素内容的亮度都在100nit以下，你希望看到这几个像素的高光细节而损失掉全片画面的亮度吗？杜比视界和动态色调映射就是做这个的哦！我说的夸张点，否则你不能理解的哦！

hsmms

tianyuansnow 发表于 2025-2-19 18:08
额，我说的是madVR，HDR10转HDR动态映射
HDR10片源里的300nits峰值的帧，在1500nits实际亮度显示设备中， ...

我的建议你还是把你这些东西 全部抛掉，先不要把问题想那么复杂。

你只要记住以下几点

1.PQ是绝对亮度，HDR10/DV都是基于PQ的，在设备亮度范围内就按照实际亮度显示，超过就 进行压缩。

2.静态映射是一部片子只使用一条映射曲线，而动态映射是针对不同亮度场景使用不同映射曲线。

3.制作标准亮度是制作标准亮度，不要认为这是这部片子的峰值亮度，就比如HDR10制作标准亮度是1000nit，但不代表你这部片子的实际峰值亮度有1000nit，也有可能整部片子最高亮度就200nit。

4.

hsmms

tianyuansnow 发表于 2025-2-19 18:19
我仔细看了101楼的图，确实如你所说：
在 “HGIG+动态映射” 的前提下，低于设备峰值亮度的信息会按照1： ...

动态映射技术原理上都是一样的，但不代表都是一样的，也有好坏的区别

至于LG的动态映射那玩意就是垃圾，建议不要使用，使用后严重偏离标准PQ曲线。


ps:难怪你会有这种问题，说到底问题的原因是LG动态映射自身问题。


至于你觉得画面更亮只是你感知上觉得更亮，但实际亮度有可能并没有提高甚至被压缩了。

tianyuansnow

kxx123 发表于 2025-2-19 18:22
我早就做过无数次的尝试了，也编写过超过十几条的profile，各种动态色调映射方案同HDR passthrough进行瞬 ...

我用手机看杜比视界的片子（《腾讯三体》流媒体制作版）
亮度是明显高了的，而且应该不是被等比拉高，暗的地方依然暗，整体观感真的非常好！
（手机全屏1200nits，10APL峰值3000nits）

因为同样我还看了一部HDR10的片子（《阿凡达2》的原盘），在手机上，以肉眼目测，峰值并没有超过1000nits


换句话说，如果动态映射不能真的提亮，那么杜比视界还是无可替代的

tianyuansnow

hsmms 发表于 2025-2-19 18:31
动态映射技术原理上都是一样的，但不代表都是一样的，也有好坏的区别

至于LG的动态映射那玩意就是垃圾， ...

那我大概懂了……
还是G系列+杜比视界最好

我本来以为可以通过 HGIG+动态映射 把HDR10干到2000nits峰值，然后在雷鸟U8（峰值2000nits）这种显示器上会有不错的表现
如果按照目前的结论，即使是madVR，使用HDR10片源，依然是峰值只有1000nits，等于这种2000nits峰值的显示器在看片的时候完全是无用的……

hsmms

tianyuansnow 发表于 2025-2-19 18:32
我用手机看杜比视界的片子（《腾讯三体》流媒体制作版）
亮度是明显高了的，而且应该不是被等比拉高，暗 ...

动态映射跟是否被提亮没有半毛关系

还有杜比也是用的动态映射，技术原理都一样

还有不要用肉眼目测当标准，这种是完全不准的。

kxx123

tianyuansnow 发表于 2025-2-19 18:32
我用手机看杜比视界的片子（《腾讯三体》流媒体制作版）
亮度是明显高了的，而且应该不是被等比拉高，暗 ...

苹果手机的HDR播放是可以随时改变亮度的，你手往上一滑，低亮度的HDR视频确实能拉亮，但电视机没有这个骚操作，至少我没看到过，PS: 通常HDR电视机在播放HDR时是自动把所有亮度拉到最高，而杜比视界则会更进一步，把对比度也拉到最高，也就是说你在电视机播放HDR视频时已经无法拉高任何亮度设置了，已经都是最高状态了！

HDR的亮度是绝对亮度，我写过一个科普贴，你有空看看吧：https://www.chiphell.com/thread-2588913-1-1.html

hsmms

tianyuansnow 发表于 2025-2-19 18:35
那我大概懂了……
还是G系列+杜比视界最好

说来多少遍了，不要把HDR10 1000nit亮度，DV 4000/1w nit亮度当做片子的实际峰值亮度。

tianyuansnow

hsmms 发表于 2025-2-19 18:35
动态映射跟是否被提亮没有半毛关系

还有杜比也是用的动态映射，技术原理都一样

但是杜比视界确实可以用到超出1000nits的设备峰值亮度
这一点应该是确定的

而HDR10最高1000nits，且大多数情况下只会低于
且目前没办法超过

所以综合来看还是得G系列+杜比视界……

我的诉求很简单，把原理真的搞清楚，然后看看到底什么选择是最优的
在这个过程中主要是真的搞清楚，然后可以进行各种分析

hsmms

tianyuansnow 发表于 2025-2-19 18:41
但是杜比视界确实可以用到超出1000nits的设备峰值亮度
这一点应该是确定的

这只是你的主观错误认知

具体的你可以参考这个帖子：

http://lt.hd199.com/thread/1933659
http://lt.hd199.com/thread/1883102

tianyuansnow

hsmms 发表于 2025-2-19 18:45
这只是你的主观错误认知

具体的你可以参考这个帖子：http://lt.hd199.com/thread/1933659 ...

我不管前面是如何定义的
只看结果：
杜比视界可以用到超出1000nits的设备亮度（你可以说在大多数情况下都低于1000nits没问题）
而HDR10无法用到

如果这句话错了，那么正确的应该是？

kxx123

tianyuansnow 发表于 2025-2-19 18:41
但是杜比视界确实可以用到超出1000nits的设备峰值亮度
这一点应该是确定的

显示设备的硬件能力是固定的，怎么可能让你看到超过其能力的亮度，而杜比视界的色调映射方式是降低画面的整个亮度以便让你看清超过显示设备硬件能力的高光细节，这个解释你看明白了吗？
但凡真实对比过杜比视界和普通HDR播放的人，都会知道：普通HDR播放的整体画面亮度观感要强于杜比视界，因为普通HDR播放基本就是做高光剪切的操作，当然LG oled电视机的早期色调映射算法也是做类似于杜比视界的亮度滚降方式，所以才会被人所诟病！

hsmms

tianyuansnow 发表于 2025-2-19 18:47
我不管前面是如何定义的
只看结果：
杜比视界可以用到超出1000nits的设备亮度（你可以说在大多数情况下都 ...

谁跟你说HDR10只能 1000nit了 ？一部分的HDR10片子实际峰值亮度超过1000nit甚至达到2000nit。

HDR10 1000nit标准只代表了这部片子是按照HDR10 1000nit标准环境下制作的，跟实际峰值亮度没有半毛关系，你 可以高于1000nit也可以低于1000nit。

tianyuansnow

hsmms 发表于 2025-2-19 18:50
谁跟你说HDR10只能 1000nit了 ？一部分的HDR10片子实际峰值亮度超过1000nit甚至达到2000nit。

HDR10 100 ...

懂了懂了，不好意思，我再去理解一下
我想到了我有一部片子确实是HDR10但是峰值10000nits！

tianyuansnow

hsmms 发表于 2025-2-19 18:50
谁跟你说HDR10只能 1000nit了 ？一部分的HDR10片子实际峰值亮度超过1000nit甚至达到2000nit。

HDR10 100 ...

感谢感谢，我彻底懂了！
HDR10和杜比视界只是“制作基准”不一样
但是杜比视界本身就多了动态映射以适应设备，而HDR10本身不带动态映射
所以如果HDR10+动态映射，就跟杜比视界没有任何后续上的区别，区别就只是片源所框定的“亮度信息本身”
而片源所框定的“亮度信息”，没有所谓的HDR10和杜比视界谁更亮或者谁更暗，只取决于片源本身
所以确实可以说杜比视界（单层）和HDR10相比，主要的区别，仅是多内置了一套动态映射

不好意思

hsmms

tianyuansnow 发表于 2025-2-19 18:57
感谢感谢，我彻底懂了！
HDR10和杜比视界只是“制作基准”不一样
但是杜比视界本身就多了动态映射以适应 ...

就是这样

tianyuansnow

hsmms 发表于 2025-2-19 19:01
就是这样

感谢感谢哈哈
这次我彻底搞明白了！

pdvc

elvba 发表于 2025-2-19 10:28
是不是现在的 hdr 就像摄影里的 raw 格式一样，成片效果好不好，其实还是得看后期调色处理的好不好。这个 ...

就是看映射准确不准确，不过，HDR基本都是噱头，会压制暗部细节，OLED还容易死黑。除了看看风光片，有SDR片源的优先SDR吧。

tianyuansnow

kxx123 发表于 2025-2-19 18:48
显示设备的硬件能力是固定的，怎么可能让你看到超过其能力的亮度，而杜比视界的色调映射方式是降低画面的 ...

你想表达的意思我明白，以硬裁切牺牲掉部分高亮细节的方式（画面占比极少），从而保住整体的峰值亮度，这更符合大多数片源的实际情况，因此动态映射实际意义不大

主要是我一开始理解的动态映射就是错的：
我以为它会额外的让亮的更亮，暗的更暗，从而压榨显示设备性能并增强HDR（对比度）效果
并且这一切的前提是一个画面中各细节的亮度比例关系不变
而且这种映射方式针对每一帧进行处理
也就是如果某一帧的峰值是300nits，最暗细节是0.001nits，然后有一些中间细节是10nits
那么动态映射会让300nits以600nits呈现，最暗细节以0.0005nits呈现，然后中间细节依旧在10nits附近（按照各自比例进行拉伸）


但是真实的动态映射实际就只是针对某些帧，当它们的最大亮度超过显示设备最大亮度时，做一个滚降处理……从而保住细节，但降低整体亮度
当这些帧结束，再返回到标准PQ（如果显示设备支持其亮度范围）

而hsmms的意思，我现在也明白了，其表达的核心：
因为大多数显示设备的内置PQ过于辣鸡，所以需要HGIG+动态映射，从而使得映射变得更加正确
也就是说你的测试结果有一个前提那就是仅限于你的设备（包含了内置PQ的水平），在这个前提下HDR passthrough更加符合你的口味

如果是我的口味：我会想尽办法在保持比例的前提下增强对比度，我才不要什么原汁原味呢，HDR就必须是对比度！

小助

Mark一下

hsmms

tianyuansnow 发表于 2025-2-19 21:10
你想表达的意思我明白，以硬裁切牺牲掉部分高亮细节的方式（画面占比极少），从而保住整体的峰值亮度，这 ...

动态映射跟普通映射（静态映射）最大区别是动态映射一部片子根据不同亮度场景使用吧不同的映射曲线，而普通映射只在一部片子中使用一条映射曲线。普通映射你要么hard clip处理要么就是roll off处理，这会导致一个问题如果你hard clip处理你画面的整体亮度是保留了，但是细节会丢失，使用roll off处理细节保留了但亮度会丢失。而动态映射正好解决了这问题，说简单点就是需要保留亮度场景我可以使用hard clip处理，需要保留细节的场景我可以使用roll off处理，因为动态映射可以在不同亮度场景下使用不同的映射曲线。

HDR10（静态映射）记录的是绝对亮度，也就是基于标准显示设备的亮度信息。这会导致一个问题就是：只有当消费者的观看环境与设备跟碟片制作方完全相同时，绝对亮度信息才能还原创作意图，这个条件十分苛刻。

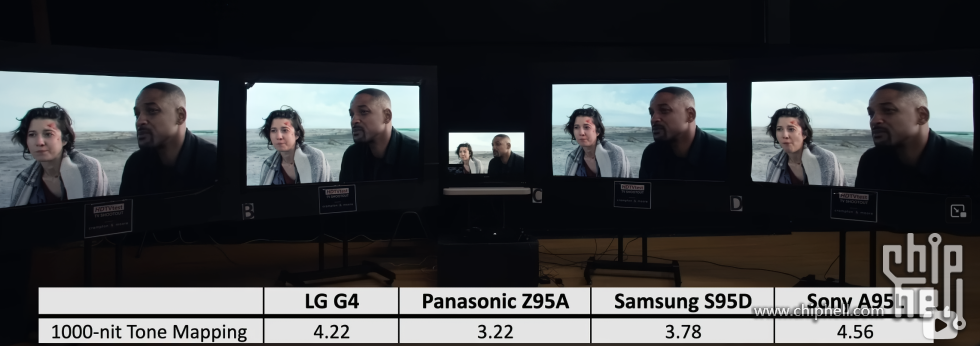

具体多难你看下面的例子就会明白，下面的设备峰值亮度全部超过1000nit，但实际亮度表现呢？中间参考的是索尼的HX3110


还有HDR是绝对亮度，300nit内容只会300nit亮度去显示，无论你 普通映射还是动态映射都不会让300nits以600nits呈现

不存在动态映射实际就只是针对某些帧这种东西，要么一部片子使用普通映射要么就是动态映射，也不存在再返回标准PQ的说法跟本不存在这个步骤。

使用HGIG目的是避免二次映射问题，还有不是PQ垃圾是映射算法垃圾。PQ是感知量化，使用色调映射尽可能贴合标准PQ，但现实是你很难做到这一点，所以才需要动态映射。

tianyuansnow

hsmms 发表于 2025-2-19 22:31
动态映射跟普通映射（静态映射）最大区别是动态映射一部片子根据不同亮度场景使用吧不同的映射曲线，而普 ...

说真的，软件怎么区分这个场景和那个场景呢？它又不是人，场景是人的概念
软件（计算机语言）能够理解的还是根据帧，以及不同帧所包含的最大亮度，平均亮度这样的信息再用算法去处理吧？

hsmms

tianyuansnow 发表于 2025-2-19 23:08
说真的，软件上怎么区分这个场景和那个场景呢？它又不是人，场景是人的概念
计算机能够理解的还是根据帧 ...

就跟你说的一样。片源中本身就包含亮度信息这些东西，没有这些东西你如何显示画面？


说句真的你想的问题太多了，你要理解这方面的知识先简单的理解就行，不要想太复杂。不要拿错误的主观认知去理解，这只会造成你认知错误而且一些问题上只会让你越来越搞不懂。

tianyuansnow

这么多的参数，居然300nits还是300nits显示，只有超过的部分可以改曲线

hsmms

tianyuansnow 发表于 2025-2-20 00:09
这么多的参数，居然300nits还是300nits显示，只有超过的部分可以改曲线

1.你的设备支持HDR吗？如果支持105 DPL是否是太低了？

2.如不不支持，你勾选output video选项干什么？


3.300nit使用300nit显示前提条件是你的设备满足300nit，就比如你设置当中只有105nit，那么显示300nit内容是会被压缩的。

tianyuansnow

hsmms 发表于 2025-2-20 00:13
1.你的设备支持HDR吗？如果支持105 DPL是否是太低了？

2.如不不支持，你勾选output video选项干什么？

这个图是随便弄的，我手上目前没有OLED和MINILED，上面的参数是之前随便填的，本来是SDR输出的截图，但是我怕截图发出来你直接来一句，你这输出是SDR你还在聊什么？所以又勾上了HDR输出

但是你之前说过madVR可以按自己口味调映射，然后我又看到这么多参数，想先研究研究

但是如果不能提亮，感觉研究的意义就不太大了，我的想法就是拉高对比度，不需要原汁原味
所以我想先搞明白动态映射的具体内涵，以及madVR究竟可以实现到哪一步，当然也确实是受到了LG动态映射的影响，以为动态映射天然的就可以提亮

hsmms

tianyuansnow 发表于 2025-2-20 00:09
这么多的参数，居然300nits还是300nits显示，只有超过的部分可以改曲线

1. [110nits_1x]

2. displayPeakNits = 130

3. moviePeakNits = 110

4. dynRatio = 1

5. customKnee = -

6. customSteepness = -

7. kneeNits = 10.3

8. steepnessNits = 110

9. compression = 1

10. topSlope = 50

11. kneeSize = 100

12. addBt2390 = -

13. addBt2390Percent = 50

14. addBt2390Steep = 100

15. compression2 = 1

16. showLine11 = +

17. showLine21 = -

18. showLine41 = -

19. showLine81 = -

20. showLine161 = -

21. showLine321 = -

22. topContrast = -

23. bottomContrast = -

24. topContrastStrength = 0

25. bottomContrastStrength = 0

26. adjustNeighbors = +

27. curve = Clip()

28. cursor = 10

29. curvePoint0 = 0.000000000000000

30. curvePoint1 = 0.025887965316650

31. curvePoint2 = 0.051775930633299

32. curvePoint3 = 0.077663895949949

33. curvePoint4 = 0.103551861266598

34. curvePoint5 = 0.129439826583248

35. curvePoint6 = 0.155327791899897

36. curvePoint7 = 0.181215757216547

37. curvePoint8 = 0.207103722533196

38. curvePoint9 = 0.232991687849846

39. curvePoint10 = 0.258879653166495

40. curvePoint11 = 0.284767618483145

41. curvePoint12 = 0.310655583799794

42. curvePoint13 = 0.336543549116444

43. curvePoint14 = 0.362431514433093

44. curvePoint15 = 0.388319479749743

45. curvePoint16 = 0.414207445066393

46. curvePoint17 = 0.440095410383042

47. curvePoint18 = 0.465983375699692

48. curvePoint19 = 0.491871341016341

49. curvePoint20 = 0.517759306332991

50.

51. [509nits_1x]

52. displayPeakNits = 130

53. moviePeakNits = 509

54. dynRatio = 1

55. customKnee = -

56. customSteepness = +

57. kneeNits = 0.73

58. steepnessNits = 100

59. compression = 1

60. topSlope = 100

61. kneeSize = 100

62. addBt2390 = +

63. addBt2390Percent = 50

64. addBt2390Steep = 675

65. compression2 = 1

66. showLine11 = +

67. showLine21 = -

68. showLine41 = -

69. showLine81 = -

70. showLine161 = -

71. showLine321 = -

72. topContrast = -

73. bottomContrast = -

74. topContrastStrength = -1

75. bottomContrastStrength = 0

76. adjustNeighbors = +

77. curve = BT2390(steepness:100)

78. cursor = 15

79. curvePoint0 = 0.000000000000000

80. curvePoint1 = 0.033925310211100

81. curvePoint2 = 0.067850620422199

82. curvePoint3 = 0.101775930633299

83. curvePoint4 = 0.135700013748204

84. curvePoint5 = 0.168917085311360

85. curvePoint6 = 0.200856124383847

86. curvePoint7 = 0.231554321991634

87. curvePoint8 = 0.261048869160687

88. curvePoint9 = 0.289376956916975

89. curvePoint10 = 0.316575776286464

90. curvePoint11 = 0.342682518295122

91. curvePoint12 = 0.367734373968916

92. curvePoint13 = 0.391768534333814

93. curvePoint14 = 0.414822190415782

94. curvePoint15 = 0.436932533240789

95. curvePoint16 = 0.458136753834801

96. curvePoint17 = 0.478472043223787

97. curvePoint18 = 0.497975592433712

98. curvePoint19 = 0.516684592490545

99. curvePoint20 = 0.534636234420254

100.

101. [2230nits_1x]

102. displayPeakNits = 130

103. moviePeakNits = 2230

104. dynRatio = 1

105. customKnee = -

106. customSteepness = +

107. kneeNits = 0

108. steepnessNits = 121

109. compression = 1

110. topSlope = 90

111. kneeSize = 100

112. addBt2390 = +

113. addBt2390Percent = 50

114. addBt2390Steep = 817

115. compression2 = 1

116. showLine11 = +

117. showLine21 = -

118. showLine41 = -

119. showLine81 = -

120. showLine161 = -

121. showLine321 = -

122. topContrast = -

123. bottomContrast = -

124. topContrastStrength = -1

125. bottomContrastStrength = 0

126. adjustNeighbors = +

127. curve = BT2390(steepness:121)

128. cursor = 10

129. curvePoint0 = 0.000000000000000

130. curvePoint1 = 0.041287075009914

131. curvePoint2 = 0.080762797178903

132. curvePoint3 = 0.118456306525181

133. curvePoint4 = 0.154417209685365

134. curvePoint5 = 0.188695113296075

135. curvePoint6 = 0.221339623993928

136. curvePoint7 = 0.252400348415542

137. curvePoint8 = 0.281926893197538

138. curvePoint9 = 0.309968864976532

139. curvePoint10 = 0.336575870389143

140. curvePoint11 = 0.361797516071990

141. curvePoint12 = 0.385683408661691

142. curvePoint13 = 0.408283154794865

143. curvePoint14 = 0.429646361108129

144. curvePoint15 = 0.449822634238103

145. curvePoint16 = 0.468861580821404

146. curvePoint17 = 0.486812807494651

147. curvePoint18 = 0.503725920894463

148. curvePoint19 = 0.519650527657458

149. curvePoint20 = 0.534636234420254

150.

151. [10000nits_1x]

152. displayPeakNits = 130

153. moviePeakNits = 10000

154. dynRatio = 1

155. customKnee = -

156. customSteepness = +

157. kneeNits = 5.59

158. steepnessNits = 146

159. compression = 1

160. topSlope = 75

161. kneeSize = 100

162. addBt2390 = +

163. addBt2390Percent = 50

164. addBt2390Steep = 988

165. compression2 = 1

166. showLine11 = +

167. showLine21 = -

168. showLine41 = -

169. showLine81 = -

170. showLine161 = -

171. showLine321 = -

172. topContrast = -

173. bottomContrast = -

174. topContrastStrength = -1

175. bottomContrastStrength = 0

176. adjustNeighbors = -

177. curve = BT2390(steepness:146)

178. cursor = 19

179. curvePoint0 = 0.000000000000000

180. curvePoint1 = 0.048546632989041

181. curvePoint2 = 0.094247575660797

182. curvePoint3 = 0.137194393572219

183. curvePoint4 = 0.177478652280257

184. curvePoint5 = 0.215191917341862

185. curvePoint6 = 0.250425754313985

186. curvePoint7 = 0.283271728753574

187. curvePoint8 = 0.313821406217582

188. curvePoint9 = 0.342166352262959

189. curvePoint10 = 0.368398132446654

190. curvePoint11 = 0.392608312325619

191. curvePoint12 = 0.414888457456804

192. curvePoint13 = 0.435330133397159

193. curvePoint14 = 0.454024905703635

194. curvePoint15 = 0.471064339933182

195. curvePoint16 = 0.486540001642751

196. curvePoint17 = 0.500543456389292

197. curvePoint18 = 0.513166269729756

198. curvePoint19 = 0.524500007221093

199. curvePoint20 = 0.534636234420254

200.

201. [110nits_2x]

202. displayPeakNits = 130

203. moviePeakNits = 110

204. dynRatio = 2

205. customKnee = -

206. customSteepness = -

207. kneeNits = 100

208. steepnessNits = 10000

209. compression = 2

210. topSlope = 50

211. kneeSize = 100

212. addBt2390 = -

213. addBt2390Percent = 50

214. addBt2390Steep = 150

215. compression2 = 1

216. showLine11 = -

217. showLine21 = +

218. showLine41 = -

219. showLine81 = -

220. showLine161 = -

221. showLine321 = -

222. topContrast = -

223. bottomContrast = -

224. topContrastStrength = 0

225. bottomContrastStrength = 0

226. adjustNeighbors = +

227. curve = Clip(compression:2)

228. cursor = 10

229. curvePoint0 = 0.000000730955903

230. curvePoint1 = 0.018309590133092

231. curvePoint2 = 0.037898871470880

232. curvePoint3 = 0.058210702982777

233. curvePoint4 = 0.079057790556260

234. curvePoint5 = 0.100338734303317

235. curvePoint6 = 0.121988464704697

236. curvePoint7 = 0.143961131317193

237. curvePoint8 = 0.166222423133282

238. curvePoint9 = 0.188745557994238

239. curvePoint10 = 0.211508965473847

240. curvePoint11 = 0.234494846996941

241. curvePoint12 = 0.257688230217884

242. curvePoint13 = 0.281076320377746

243. curvePoint14 = 0.304648039432591

244. curvePoint15 = 0.328393688930692

245. curvePoint16 = 0.352304697303484

246. curvePoint17 = 0.376373426438285

247. curvePoint18 = 0.400593020933585

248. curvePoint19 = 0.424957288756285

249. curvePoint20 = 0.449460605442422

250.

251. [509nits_2x]

252. displayPeakNits = 130

253. moviePeakNits = 509

254. dynRatio = 2

255. customKnee = -

256. customSteepness = +

257. kneeNits = 227

258. steepnessNits = 150

259. compression = 2

260. topSlope = 100

261. kneeSize = 100

262. addBt2390 = +

263. addBt2390Percent = 50

264. addBt2390Steep = 675

265. compression2 = 2

266. showLine11 = -

267. showLine21 = +

268. showLine41 = -

269. showLine81 = -

270. showLine161 = -

271. showLine321 = -

272. topContrast = -

273. bottomContrast = -

274. topContrastStrength = -2

275. bottomContrastStrength = 0

276. adjustNeighbors = +

277. curve = BT2390(steepness:150,compression:2)

278. cursor = 10

279. curvePoint0 = 0.000000730955903

280. curvePoint1 = 0.024295516684356

281. curvePoint2 = 0.050440817023320

282. curvePoint3 = 0.077612909589753

283. curvePoint4 = 0.105543237544023

284. curvePoint5 = 0.134087156837980

285. curvePoint6 = 0.163152109445249

286. curvePoint7 = 0.192672996165795

287. curvePoint8 = 0.222601166501991

288. curvePoint9 = 0.252815859647206

289. curvePoint10 = 0.282443755204849

290. curvePoint11 = 0.311247908959411

291. curvePoint12 = 0.339223017417577

292. curvePoint13 = 0.366372023596709

293. curvePoint14 = 0.392704372836122

294. curvePoint15 = 0.418234752123118

295. curvePoint16 = 0.442982150999453

296. curvePoint17 = 0.466969144182036

297. curvePoint18 = 0.490221331770572

298. curvePoint19 = 0.512766894433394

299. curvePoint20 = 0.534636234420254

300.

301. [2230nits_2x]

302. displayPeakNits = 130

303. moviePeakNits = 2230

304. dynRatio = 2

305. customKnee = -

306. customSteepness = +

307. kneeNits = 0.77

308. steepnessNits = 182

309. compression = 2

310. topSlope = 90

311. kneeSize = 100

312. addBt2390 = +

313. addBt2390Percent = 50

314. addBt2390Steep = 817

315. compression2 = 2

316. showLine11 = -

317. showLine21 = +

318. showLine41 = -

319. showLine81 = -

320. showLine161 = -

321. showLine321 = -

322. topContrast = -

323. bottomContrast = -

324. topContrastStrength = -2

325. bottomContrastStrength = 0

326. adjustNeighbors = +

327. curve = BT2390(steepness:182,compression:2)

328. cursor = 19

329. curvePoint0 = 0.000000730955903

330. curvePoint1 = 0.030372820412673

331. curvePoint2 = 0.063208541033036

332. curvePoint3 = 0.097395922626210

333. curvePoint4 = 0.132579346191856

334. curvePoint5 = 0.167832197664217

335. curvePoint6 = 0.201854367565830

336. curvePoint7 = 0.234532775529761

337. curvePoint8 = 0.265811065055681

338. curvePoint9 = 0.295661005584701

339. curvePoint10 = 0.324074154159028

340. curvePoint11 = 0.351056664907432

341. curvePoint12 = 0.376625850351705

342. curvePoint13 = 0.400807790201350

343. curvePoint14 = 0.423635602735775

344. curvePoint15 = 0.445148154795848

345. curvePoint16 = 0.465389073251942

346. curvePoint17 = 0.484405970383738

347. curvePoint18 = 0.502249825248750

348. curvePoint19 = 0.518974481555227

349. curvePoint20 = 0.534636234420254

350.

351. [10000nits_2x]

352. displayPeakNits = 130

353. moviePeakNits = 10000

354. dynRatio = 2

355. customKnee = -

356. customSteepness = +

357. kneeNits = 0.05

358. steepnessNits = 219

359. compression = 2

360. topSlope = 75

361. kneeSize = 100

362. addBt2390 = +

363. addBt2390Percent = 50

364. addBt2390Steep = 988

365. compression2 = 2

366. showLine11 = -

367. showLine21 = +

368. showLine41 = -

369. showLine81 = -

370. showLine161 = -

371. showLine321 = -

372. topContrast = -

373. bottomContrast = -

374. topContrastStrength = -2

375. bottomContrastStrength = 0

376. adjustNeighbors = +

377. curve = BT2390(steepness:219,compression:2)

378. cursor = 10

379. curvePoint0 = 0.000000730955903

380. curvePoint1 = 0.036528941012906

381. curvePoint2 = 0.075482263180947

382. curvePoint3 = 0.113878920566485

383. curvePoint4 = 0.151140216451873

384. curvePoint5 = 0.187003883500117

385. curvePoint6 = 0.221324148337845

386. curvePoint7 = 0.254019067442441

387. curvePoint8 = 0.285046489043880

388. curvePoint9 = 0.314391215062092

389. curvePoint10 = 0.342057390989562

390. curvePoint11 = 0.368063642902565

391. curvePoint12 = 0.392439787667323

392. curvePoint13 = 0.415224505281773

393. curvePoint14 = 0.436463631119388

394. curvePoint15 = 0.456208864913455

395. curvePoint16 = 0.474516770016318

396. curvePoint17 = 0.491447981044556

397. curvePoint18 = 0.507066565093142

398. curvePoint19 = 0.521439498770313

399. curvePoint20 = 0.534636234420254

400.

401. [110nits_4x]

402. displayPeakNits = 130

403. moviePeakNits = 110

404. dynRatio = 4

405. customKnee = -

406. customSteepness = -

407. kneeNits = 4.68

408. steepnessNits = 28

409. compression = 4

410. topSlope = 50

411. kneeSize = 100

412. addBt2390 = -

413. addBt2390Percent = 50

414. addBt2390Steep = 150

415. compression2 = 1

416. showLine11 = -

417. showLine21 = -

418. showLine41 = +

419. showLine81 = -

420. showLine161 = -

421. showLine321 = -

422. topContrast = -

423. bottomContrast = -

424. topContrastStrength = 0

425. bottomContrastStrength = 0

426. adjustNeighbors = +

427. curve = Clip(compression:4)

428. cursor = 10

429. curvePoint0 = 0.000000730955903

430. curvePoint1 = 0.012765892485676

431. curvePoint2 = 0.027289522589019

432. curvePoint3 = 0.042889777904562

433. curvePoint4 = 0.059320686133779

434. curvePoint5 = 0.076445122299307

435. curvePoint6 = 0.094173211330351

436. curvePoint7 = 0.112440542584093

437. curvePoint8 = 0.131198223620239

438. curvePoint9 = 0.150407614495971

439. curvePoint10 = 0.170037250272180

440. curvePoint11 = 0.190060909350428

441. curvePoint12 = 0.210456333508798

442. curvePoint13 = 0.231204342808628

443. curvePoint14 = 0.252288202065330

444. curvePoint15 = 0.273693154263495

445. curvePoint16 = 0.295406068582167

446. curvePoint17 = 0.317415169388811

447. curvePoint18 = 0.339709823856152

448. curvePoint19 = 0.362280372935125

449. curvePoint20 = 0.385117994995325

450.

451. [509nits_4x]

452. displayPeakNits = 130

453. moviePeakNits = 509

454. dynRatio = 4

455. customKnee = -

456. customSteepness = -

457. kneeNits = 28

458. steepnessNits = 509

459. compression = 4

460. topSlope = 100

461. kneeSize = 100

462. addBt2390 = -

463. addBt2390Percent = 50

464. addBt2390Steep = 150

465. compression2 = 1

466. showLine11 = -

467. showLine21 = -

468. showLine41 = +

469. showLine81 = -

470. showLine161 = -

471. showLine321 = -

472. topContrast = -

473. bottomContrast = -

474. topContrastStrength = 5

475. bottomContrastStrength = 5

476. adjustNeighbors = +

477. curve = Clip(compression:4)

478. cursor = 15

479. curvePoint0 = 0.000000730955903

480. curvePoint1 = 0.017135907658463

481. curvePoint2 = 0.036868668117458

482. curvePoint3 = 0.058170130602465

483. curvePoint4 = 0.080680367820349

484. curvePoint5 = 0.104199591973238

485. curvePoint6 = 0.128597128929963

486. curvePoint7 = 0.153779441637607

487. curvePoint8 = 0.179675583000420

488. curvePoint9 = 0.206229511853248

489. curvePoint10 = 0.233395609233388

490. curvePoint11 = 0.261135867368034

491. curvePoint12 = 0.289418028714747

492. curvePoint13 = 0.318214300027845

493. curvePoint14 = 0.347500432445390

494. curvePoint15 = 0.377255044305049

495. curvePoint16 = 0.407459110499769

496. curvePoint17 = 0.438095569430653

497. curvePoint18 = 0.469149015066673

498. curvePoint19 = 0.500605451924803

499. curvePoint20 = 0.532452097443785

500.

501. [2230nits_4x]

502. displayPeakNits = 130

503. moviePeakNits = 2230

504. dynRatio = 4

505. customKnee = -

506. customSteepness = +

507. kneeNits = 3.86

508. steepnessNits = 272

509. compression = 4

510. topSlope = 90

511. kneeSize = 200

512. addBt2390 = +

513. addBt2390Percent = 50

514. addBt2390Steep = 817

515. compression2 = 4

516. showLine11 = -

517. showLine21 = -

518. showLine41 = +

519. showLine81 = -

520. showLine161 = -

521. showLine321 = -

522. topContrast = -

523. bottomContrast = -

524. topContrastStrength = 0

525. bottomContrastStrength = 5

526. adjustNeighbors = +

527. curve = BT2390(steepness:272,compression:4)

528. cursor = 12

529. curvePoint0 = 0.000000730955903

530. curvePoint1 = 0.021637559170736

531. curvePoint2 = 0.046794016026229

532. curvePoint3 = 0.074058209654494

533. curvePoint4 = 0.102945670984875

534. curvePoint5 = 0.133188195045709

535. curvePoint6 = 0.164610575082064

536. curvePoint7 = 0.197087483760328

537. curvePoint8 = 0.230523580234026

538. curvePoint9 = 0.263738642070708

539. curvePoint10 = 0.295605234935954

540. curvePoint11 = 0.326044674149333

541. curvePoint12 = 0.355010672073055

542. curvePoint13 = 0.382482215477769

543. curvePoint14 = 0.408458508023954

544. curvePoint15 = 0.432955236709969

545. curvePoint16 = 0.456001727207544

546. curvePoint17 = 0.477638719367339

547. curvePoint18 = 0.497916589833989

548. curvePoint19 = 0.516893906345488

549. curvePoint20 = 0.534636234420252

550.

551. [10000nits_4x]

552. displayPeakNits = 130

553. moviePeakNits = 10000

554. dynRatio = 4

555. customKnee = -

556. customSteepness = +

557. kneeNits = 0.96

558. steepnessNits = 329

559. compression = 4

560. topSlope = 75

561. kneeSize = 200

562. addBt2390 = +

563. addBt2390Percent = 50

564. addBt2390Steep = 988

565. compression2 = 4

566. showLine11 = -

567. showLine21 = -

568. showLine41 = +

569. showLine81 = -

570. showLine161 = -

571. showLine321 = -

572. topContrast = -

573. bottomContrast = -

574. topContrastStrength = 0

575. bottomContrastStrength = 0

576. adjustNeighbors = +

577. curve = BT2390(steepness:329,compression:4)

578. cursor = 10

579. curvePoint0 = 0.000000730955903

580. curvePoint1 = 0.026254900085058

581. curvePoint2 = 0.057022856531618

582. curvePoint3 = 0.090478826615312

583. curvePoint4 = 0.126004616764747

584. curvePoint5 = 0.163051358010454

585. curvePoint6 = 0.199475838033687

586. curvePoint7 = 0.234547681903844

587. curvePoint8 = 0.268067653644346

588. curvePoint9 = 0.299904986569835

589. curvePoint10 = 0.329978137870876

590. curvePoint11 = 0.358242617526641

591. curvePoint12 = 0.384682772995642

592. curvePoint13 = 0.409305957512204

593. curvePoint14 = 0.432138221064578

594. curvePoint15 = 0.453221021138065

595. curvePoint16 = 0.472608643771108

596. curvePoint17 = 0.490366136218986

597. curvePoint18 = 0.506567619020645

598. curvePoint19 = 0.521294886845843

599. curvePoint20 = 0.534636234420252

600.

601. [110nits_8x]

602. displayPeakNits = 130

603. moviePeakNits = 110

604. dynRatio = 8

605. customKnee = -

606. customSteepness = -

607. kneeNits = 42

608. steepnessNits = 110

609. compression = 8

610. topSlope = 50

611. kneeSize = 100

612. addBt2390 = -

613. addBt2390Percent = 50

614. addBt2390Steep = 150

615. compression2 = 1

616. showLine11 = -

617. showLine21 = -

618. showLine41 = -

619. showLine81 = +

620. showLine161 = -

621. showLine321 = -

622. topContrast = -

623. bottomContrast = -

624. topContrastStrength = 0

625. bottomContrastStrength = 0

626. adjustNeighbors = +

627. curve = Clip(compression:8)

628. cursor = 10

629. curvePoint0 = 0.000000730955903

630. curvePoint1 = 0.008786829858629

631. curvePoint2 = 0.019346132087009

632. curvePoint3 = 0.031079116037929

633. curvePoint4 = 0.043754841541681

634. curvePoint5 = 0.057241428355367

635. curvePoint6 = 0.071450952646308

636. curvePoint7 = 0.086319546459629

637. curvePoint8 = 0.101798180294550

638. curvePoint9 = 0.117847727759501

639. curvePoint10 = 0.134436053831273

640. curvePoint11 = 0.151536172283859

641. curvePoint12 = 0.169125015933049

642. curvePoint13 = 0.187182580737706

643. curvePoint14 = 0.205691309544921

644. curvePoint15 = 0.224635635760920

645. curvePoint16 = 0.244001637380005

646. curvePoint17 = 0.263776769350795

647. curvePoint18 = 0.283949652913050

648. curvePoint19 = 0.304509907244790

649. curvePoint20 = 0.325448013114545

650.

651. [509nits_8x]

652. displayPeakNits = 130

653. moviePeakNits = 509

654. dynRatio = 8

655. customKnee = -

656. customSteepness = -

657. kneeNits = 100

658. steepnessNits = 10000

659. compression = 8

660. topSlope = 50

661. kneeSize = 100

662. addBt2390 = -

663. addBt2390Percent = 50

664. addBt2390Steep = 150

665. compression2 = 1

666. showLine11 = -

667. showLine21 = -

668. showLine41 = -

669. showLine81 = +

670. showLine161 = -

671. showLine321 = -

672. topContrast = -

673. bottomContrast = -

674. topContrastStrength = 0

675. bottomContrastStrength = 0

676. adjustNeighbors = +

677. curve = Clip(compression:8)

678. cursor = 10

679. curvePoint0 = 0.000000730955903

680. curvePoint1 = 0.011917522810259

681. curvePoint2 = 0.026511243027926

682. curvePoint3 = 0.042858180377959

683. curvePoint4 = 0.060614680327346

684. curvePoint5 = 0.079585284574454

685. curvePoint6 = 0.099639906130886

686. curvePoint7 = 0.120684132668225

687. curvePoint8 = 0.142645521174204

688. curvePoint9 = 0.165466275626300

689. curvePoint10 = 0.189098933278787

690. curvePoint11 = 0.213503637717610

691. curvePoint12 = 0.238646320229112

692. curvePoint13 = 0.264497434760476

693. curvePoint14 = 0.291031047469266

694. curvePoint15 = 0.318224162767683

695. curvePoint16 = 0.346056212485177

696. curvePoint17 = 0.374508660776127

697. curvePoint18 = 0.403564693176859

698. curvePoint19 = 0.433208968142166

699. curvePoint20 = 0.463427415833792

700.

701. [2230nits_8x]

702. displayPeakNits = 130

703. moviePeakNits = 2230

704. dynRatio = 8

705. customKnee = -

706. customSteepness = +

707. kneeNits = 10.8

708. steepnessNits = 408

709. compression = 8

710. topSlope = 90

711. kneeSize = 100

712. addBt2390 = +

713. addBt2390Percent = 50

714. addBt2390Steep = 817

715. compression2 = 8

716. showLine11 = -

717. showLine21 = -

718. showLine41 = -

719. showLine81 = +

720. showLine161 = -

721. showLine321 = -

722. topContrast = -

723. bottomContrast = -

724. topContrastStrength = 0

725. bottomContrastStrength = 0

726. adjustNeighbors = +

727. curve = BT2390(steepness:408,compression:8)

728. cursor = 10

729. curvePoint0 = 0.000000730955903

730. curvePoint1 = 0.015186977173032

731. curvePoint2 = 0.034064542476208

732. curvePoint3 = 0.055346597218174

733. curvePoint4 = 0.078564370356643

734. curvePoint5 = 0.103451853206555

735. curvePoint6 = 0.129832163930288

736. curvePoint7 = 0.157576980330150

737. curvePoint8 = 0.186587857392813

738. curvePoint9 = 0.216786258456890

739. curvePoint10 = 0.248107687215887

740. curvePoint11 = 0.280497980300468

741. curvePoint12 = 0.313840885533870

742. curvePoint13 = 0.346499167592660

743. curvePoint14 = 0.377739944807984

744. curvePoint15 = 0.407514691713959

745. curvePoint16 = 0.435806289292331

746. curvePoint17 = 0.462623850966308

747. curvePoint18 = 0.487998627639492

748. curvePoint19 = 0.511980695946005

749. curvePoint20 = 0.534636234420255

750.

751. [10000nits_8x]

752. displayPeakNits = 130

753. moviePeakNits = 10000

754. dynRatio = 8

755. customKnee = -

756. customSteepness = +

757. kneeNits = 3.78

758. steepnessNits = 493

759. compression = 8

760. topSlope = 75

761. kneeSize = 100

762. addBt2390 = +

763. addBt2390Percent = 50

764. addBt2390Steep = 988

765. compression2 = 8

766. showLine11 = -

767. showLine21 = -

768. showLine41 = -

769. showLine81 = +

770. showLine161 = -

771. showLine321 = -

772. topContrast = -

773. bottomContrast = -

774. topContrastStrength = 0

775. bottomContrastStrength = 0

776. adjustNeighbors = +

777. curve = BT2390(steepness:493,compression:8)

778. cursor = 10

779. curvePoint0 = 0.000000730955903

780. curvePoint1 = 0.018580646097969

781. curvePoint2 = 0.041965353009561

782. curvePoint3 = 0.068470907215782

783. curvePoint4 = 0.097492460210701

784. curvePoint5 = 0.128687270055124

785. curvePoint6 = 0.161827544313546

786. curvePoint7 = 0.196748055984962

787. curvePoint8 = 0.233296265579320

788. curvePoint9 = 0.269463069604530

789. curvePoint10 = 0.303861484942502

790. curvePoint11 = 0.336306214206930

791. curvePoint12 = 0.366678681549420

792. curvePoint13 = 0.394913411171244

793. curvePoint14 = 0.420988063703770

794. curvePoint15 = 0.444915845038256

795. curvePoint16 = 0.466739533335916

796. curvePoint17 = 0.486526657788887

797. curvePoint18 = 0.504365528142257

798. curvePoint19 = 0.520361913834608

799. curvePoint20 = 0.534636234420255

800.

801. [110nits_16x]

802. displayPeakNits = 130

803. moviePeakNits = 110

804. dynRatio = 16

805. customKnee = -

806. customSteepness = -

807. kneeNits = 100

808. steepnessNits = 10000

809. compression = 16

810. topSlope = 50

811. kneeSize = 100

812. addBt2390 = -

813. addBt2390Percent = 50

814. addBt2390Steep = 150

815. compression2 = 1

816. showLine11 = -

817. showLine21 = -

818. showLine41 = -

819. showLine81 = -

820. showLine161 = +

821. showLine321 = -

822. topContrast = -

823. bottomContrast = -

824. topContrastStrength = 0

825. bottomContrastStrength = 0

826. adjustNeighbors = +

827. curve = Clip(compression:16)

828. cursor = 10

829. curvePoint0 = 0.000000730955903

830. curvePoint1 = 0.005980714494945

831. curvePoint2 = 0.013517571343071

832. curvePoint3 = 0.022164527706688

833. curvePoint4 = 0.031739062791368

834. curvePoint5 = 0.042135350049108

835. curvePoint6 = 0.053282169119557

836. curvePoint7 = 0.065127443295475

837. curvePoint8 = 0.077630999058969

838. curvePoint9 = 0.090760657634684

839. curvePoint10 = 0.104489914059256

840. curvePoint11 = 0.118796460500262

841. curvePoint12 = 0.133661196115544

842. curvePoint13 = 0.149067535125001

843. curvePoint14 = 0.165000906823328

844. curvePoint15 = 0.181448384152182

845. curvePoint16 = 0.198398401277432

846. curvePoint17 = 0.215840534535043

847. curvePoint18 = 0.233765329587479

848. curvePoint19 = 0.252164162985542

849. curvePoint20 = 0.271029129816362

850.

851. [509nits_16x]

852. displayPeakNits = 130

853. moviePeakNits = 509

854. dynRatio = 16

855. customKnee = -

856. customSteepness = -

857. kneeNits = 60

858. steepnessNits = 509

859. compression = 16

860. topSlope = 50

861. kneeSize = 100

862. addBt2390 = -

863. addBt2390Percent = 50

864. addBt2390Steep = 150

865. compression2 = 1

866. showLine11 = -

867. showLine21 = -

868. showLine41 = -

869. showLine81 = -

870. showLine161 = +

871. showLine321 = -

872. topContrast = -

873. bottomContrast = -

874. topContrastStrength = 0

875. bottomContrastStrength = 0

876. adjustNeighbors = +

877. curve = Clip(compression:16)

878. cursor = 10

879. curvePoint0 = 0.000000730955903

880. curvePoint1 = 0.008184673054758

881. curvePoint2 = 0.018770141347997

882. curvePoint3 = 0.031055027550844

883. curvePoint4 = 0.044764798472830

884. curvePoint5 = 0.059741135209080

885. curvePoint6 = 0.075877782849111

886. curvePoint7 = 0.093097187613318

887. curvePoint8 = 0.111339604203495

888. curvePoint9 = 0.130557231427413

889. curvePoint10 = 0.150710736046964

890. curvePoint11 = 0.171767043973787

891. curvePoint12 = 0.193697860690382

892. curvePoint13 = 0.216478638095640

893. curvePoint14 = 0.240087828414739

894. curvePoint15 = 0.264506330233995

895. curvePoint16 = 0.289717067465284

896. curvePoint17 = 0.315704662901808

897. curvePoint18 = 0.342455180722106

898. curvePoint19 = 0.369955920308809

899. curvePoint20 = 0.398195248960912

900.

901. [2230nits_16x]

902. displayPeakNits = 130

903. moviePeakNits = 2230

904. dynRatio = 16

905. customKnee = -

906. customSteepness = +

907. kneeNits = 23.7

908. steepnessNits = 613

909. compression = 16

910. topSlope = 90

911. kneeSize = 100

912. addBt2390 = +

913. addBt2390Percent = 50

914. addBt2390Steep = 817

915. compression2 = 16

916. showLine11 = -

917. showLine21 = -

918. showLine41 = -

919. showLine81 = -

920. showLine161 = +

921. showLine321 = -

922. topContrast = -

923. bottomContrast = -

924. topContrastStrength = 1

925. bottomContrastStrength = 0

926. adjustNeighbors = +

927. curve = BT2390(steepness:613,compression:16)

928. cursor = 10

929. curvePoint0 = 0.000000730955903

930. curvePoint1 = 0.010515601909327

931. curvePoint2 = 0.024400059952406

932. curvePoint3 = 0.040663189792489

933. curvePoint4 = 0.058927592612728

934. curvePoint5 = 0.078976370771273

935. curvePoint6 = 0.100664222773459

936. curvePoint7 = 0.123885233396774

937. curvePoint8 = 0.148557894923821

938. curvePoint9 = 0.174617055583206

939. curvePoint10 = 0.202009152028280

940. curvePoint11 = 0.230689182323479

941. curvePoint12 = 0.260618679479696

942. curvePoint13 = 0.291764297081591

943. curvePoint14 = 0.324096788288848

944. curvePoint15 = 0.357590247993817

945. curvePoint16 = 0.392106882895919

946. curvePoint17 = 0.427122628328461

947. curvePoint18 = 0.462556435822832

948. curvePoint19 = 0.498395429932351

949. curvePoint20 = 0.534636234420254

950.

951. [10000nits_16x]

952. displayPeakNits = 130

953. moviePeakNits = 10000

954. dynRatio = 16

955. customKnee = -

956. customSteepness = +

957. kneeNits = 9.63

958. steepnessNits = 739

959. compression = 16

960. topSlope = 75

961. kneeSize = 100

962. addBt2390 = +

963. addBt2390Percent = 50

964. addBt2390Steep = 988

965. compression2 = 16

966. showLine11 = -

967. showLine21 = -

968. showLine41 = -

969. showLine81 = -

970. showLine161 = +

971. showLine321 = -

972. topContrast = -

973. bottomContrast = -

974. topContrastStrength = 1

975. bottomContrastStrength = -2

976. adjustNeighbors = +

977. curve = BT2390(steepness:739,compression:16)

978. cursor = 10

979. curvePoint0 = 0.000000730955903

980. curvePoint1 = 0.012962239634779

981. curvePoint2 = 0.030374874206683

982. curvePoint3 = 0.050929550609796

983. curvePoint4 = 0.074136419573121

984. curvePoint5 = 0.099714639277803

985. curvePoint6 = 0.127476335971049

986. curvePoint7 = 0.157284708148488

987. curvePoint8 = 0.189034576598591

988. curvePoint9 = 0.222641940287665

989. curvePoint10 = 0.258037796510532

990. curvePoint11 = 0.295164219173218

991. curvePoint12 = 0.332148512561986

992. curvePoint13 = 0.366682037834247

993. curvePoint14 = 0.398591381239931

994. curvePoint15 = 0.427792650841878

995. curvePoint16 = 0.454273511185719

996. curvePoint17 = 0.478081258616164

997. curvePoint18 = 0.499312936702373

998. curvePoint19 = 0.518107003719784

999. curvePoint20 = 0.534636234420254


复制代码

把上面的代码保存进TXT文件当中，你上面图中有个edit custom TM 选项，点击进去。然后选择import from选项，找到你刚才保存的TXT文件，打开就行。你就能看到你的设备如何映射处理了。你可以把DPL设置 成高点，看一下高一点的DPL如何进行处理
